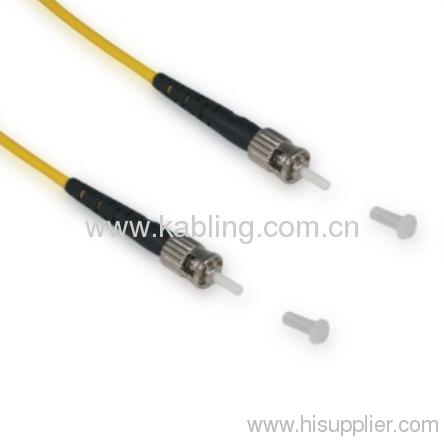

ST/ST simplex Singlemode Fiber Optical patch Cord

Description:

Cores: Simplex,
Mode: Singlemode

1.Insertion loss:≤0.3dB
2.Return loss:PC≥40dB APC≥60dB
3.Repeatability:≤0.3dB
4.Compatibility≤0.3dB
5.Insertion times: >1000
6.Working temperature:-25℃~70℃

Optional Termiantion: (For other & more detail please conact us)

Features:

1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

4) Available in fiber bunch, ribbon fan-out, pigtail available;

5) Meets ISO9001, ROHS and Bell core GR 326-core standards;

6) Customized specifications welcomed.

Applications:

• Telecommunication Networks

• Gigabit Ethernet , GPON , EPON

• Computer networks

• CATV networks

• FTTx Termination

How to order:

1. Please inform us which models,quantity and shipment address for order.
2. We will make PI for you.
3. Please confirm the PI, and arrange the payment.
4. We arrange the production and shipment.
