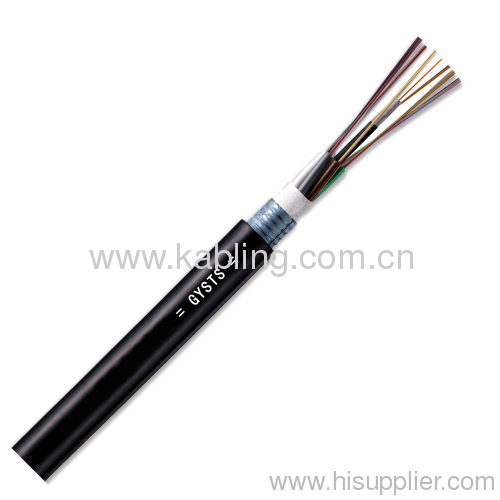

GYSTS Level Twists Steel Tape Light Armored Fiber Optical Cable

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KB-D177/179

Production Capacity: 10000km

Delivery Date: 15~30days

Type: Optical Fiber

Weight: 110KG/KM

Nominal Outer Diameter: 10.5mm

HS CODE: 8544700000

Means of Transport: Ocean,Land,Air

Packing: wooden drum

Application: Telecommunications

Brand Name: KABLING OR OEM

Number of Conductors: 2~64

Operating Temperature: -40℃~70℃

PACKING: WOOD DRUM

Applicatons
.Aerial,Duct
Cores (2~64)

Cable Cross-section Level Twists Steel Tape Light Armored Fiber Optical Cable(GYSTS)

Applicatons
.Aerial,Duct

Features:
1.Accuracy control materials itself has good bears the hydrolysis performance and a higher intensity , in the tube imitates by the secial grease ,has carried on the crucial protection to the optical fiber.
2.Good resistance tocompression and the flexible.
3.Polyetheylene(PE)the protective covering has the good anti-ultraviolet radiation performance.
4.Ti yse tge fikkiwubg neasyre ti guarantee the optical cable the waterproof performance : - the simple root steel wire center strengthens in the core-- loose drive pipe to fill the special waterproof compound - complete cable core to fill two-sided-- spreads models the steel belt(PSP) the damp proof course good anti-water material to prevent the optical cable longitudinal seep

Order information
Item	Specification			Description
KB-D177	2-64 cores			Single mode
KB-D179	2-64 cores			Multimode
Data information
Type of Optical cable	Attenuation @20℃(Db/km)				Typical bandwidth
Type of Optical cable	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm
A1.a 50/125um			≤0.36	≤0.22
B1.1 9/125um	≤3.0	≤1.0			≥500	≥1000
a1.b 62.5/125um	≤3.0	≤1.0			≥200	≥600
Technical parameters
Number of Core	Diameter	Weight	Max.tensile strength		Max.crush pressure	Temperature
	(mm )	(kg/km)	Long/short term(N)		Long/short term(N/10cm)	Using temperature
2~30	10.5	110	600/1500		300/1000	-40℃~70℃
32~36	11.2	135	1000/3000		300/1000	-40℃~70℃
38~64	12	142	1000/3000		300/1000	-40℃~70℃

How to order:

1. Please inform us which models,quantity and shipment address for order.
2. We will make PI for you.
3. Please confirm the PI, and arrange the payment.
4. We arrange the production and shipment.
