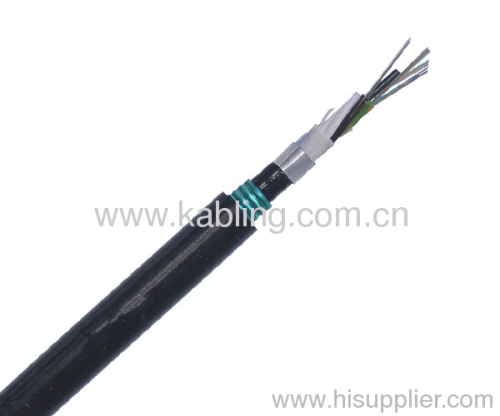

GYTA53 Layer-stranded Reinforced Armored and Double Sheathed Fiber Optical calbe

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KB-D176S/178S

Production Capacity: 10000KM

Delivery Date: 15~30days

Type: Optical Fiber

Weight: 230KG/KM

Nominal Outer Diameter: 14.6mm

HS CODE: 8544700000

Means of Transport: Ocean,Land,Air

Packing: wooden drum

Application: Telecommunications

Brand Name: KABLING OR OEM

Number of Conductors: 2~60

Operating Temperature: -40℃~70℃

PACKING: WOOD DRUM

Application:
.Adopted to Outdoor distribution.
.Suitable for aerial ,duct and direct buried.
.Long distance and local area network communictaion

Cable Cross section

Application:
.Adopted to Outdoor distribution.
.Suitable for aerial ,duct and direct buried.
.Long distance and local area network communictaion

Feature:

.Steel wire strength.filler protect tube fiber.steel tape armord.
.Good ultra violet radiation resistant property.
.Double sheath and Double armored..Good moisture-resistance.

Order information
Item	Specification			Description
KB-D177S	2-60 cores			Single mode
KB-D179S	2-60 cores			Multimode
Technical parameters
Number of Core	Diameter	Weight	Max.tensile strength		Max.crush pressure	Temperature
	(mm )	(kg/km)	Long/short term(N)		Long/short term(N/10cm)	Using temperature
2~36	14.6	230	1000/3000		1000/3000	-40℃~70℃
38~60	16.2	290	1000/3000		300/1000	-40℃~70℃

How to order:

1. Please inform us which models,quantity and shipment address for order.
2. We will make PI for you.
3. Please confirm the PI, and arrange the payment.
4. We arrange the production and shipment.
