GYSTA Twists Aluminium Tape Light Armored Fiber Optical cable from China manufacturer

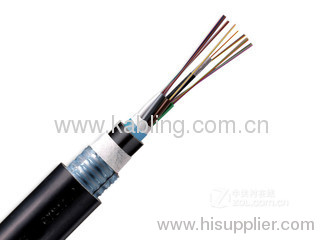

GYSTA Twists Aluminium Tape Light Armored Fiber Optical cable

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KB-D176/178

Production Capacity: 10000km

Delivery Date: 15~30days

Type: Optical Fiber

Weight: 100KG/KM

Nominal Outer Diameter: 10.5mm

HS CODE: 8544700000

Means of Transport: Ocean,Land,Air

Packing: wooden drum or as customer ...

Application: Telecommunications

Brand Name: KABLING OR OEM

Number of Conductors: 2~60

Operating Temperature: -40℃~70℃

PACKING: WOOD DRUM

Application:
.Adopted to Outdoor distribution.
.Suitable for aerial .pipeline laying method.
.Long distance and local area network commun

Cable Cross section

Features:

.Steel wire strength.filler protect tube fiber.Aluminum tape armord.
.Good ultra violet radiation resistant property.
.Good moisture-resistance.

Order information
Item	Specification			Description
KB-D176	2-60 cores			Single mode
KB-D178	2-60 cores			Multimode
Technical parameters
Number of Core	Diameter	Weight	Max.tensile strength		Max.crush pressure	Temperature
	(mm )	(kg/km)	Long/short term(N)		Long/short term(N/10cm)	Using temperature
2~30	10.5	110	600/1500		300/1000	-40℃~70℃
32~36	11.2	135	1000/3000		300/1000	-40℃~70℃
38~60	12	142	1000/3000		300/1000	-40℃~70℃

Level Twists Aluminium Tape Light Armored Fiber Optical cable(GYSTA)

How to order:

1. Please inform us which models,quantity and shipment address for order.
2. We will make PI for you.
3. Please confirm the PI, and arrange the payment.
4. We arrange the production and shipment.
