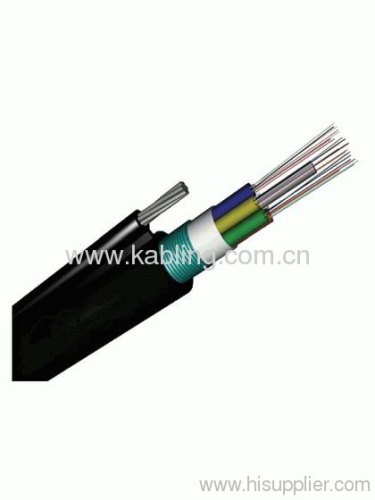

GYTC8S Figure-8 stranded loose tube cable with steel tape

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KB-D181/182

Production Capacity: 20000 km per month

Delivery Date: 15~30days

Type: Optical Fiber

Weight: 210KG/KM

Nominal Outer Diameter: 15.5mm

HS CODE: 8544700000

Means of Transport: Ocean,Land,Air

Packing: wooden drum or as customer ...

Application: Telecommunications

Brand Name: KABLING OR OEM

Number of Conductors: 2~216

Operating Temperature: -40℃~70℃

PACKING: WOOD DRUM

GYTC8S Fiber Optical Cable
Application:
.Aerial
self-support optical fiber cable
easily installation
Proper design, good quality

Cable Cross section
Figure-8 stranded loose tube cable with steel tape(GYTC8S)

‍Specifications:

1)Solid stranded steel messenger
2)Low dispersion and attenuation.
3)Proper design, good quality

Application Scope:

Long-distance communication
local trunk line
CATV & computer networks system

Features:

Stainless steel or gaivanized steel self-supporting.
.Excellet mechanical and environmental performance.

Technical data

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength	Crush Resistance	Bending Radius
				Long/Short Term	Long/Short Term	Static/Dynamic
				N	N/100mm	mm
GYTC8S	2-30	9.8*18.5	166	2000/6000	300/1000	10D/20D
GYTC8S	32-48	10.6*19.3	180	2000/6000	300/1000	10D/20D
GYTC8S	50-60	10.6*19.6	190	2000/6000	300/1000	10D/20D
GYTC8S	62-72	11.3*20.3	217	2000/6000	300/1000	10D/20D
GYTC8S	74-84	12.7*21.7	252	2000/6000	300/1000	10D/20D
GYTC8S	86-96	12.7*21.7	252	2000/6000	300/1000	10D/20D

How to order:

1. Please inform us which models,quantity and shipment address for order.
2. We will make PI for you.
3. Please confirm the PI, and arrange the payment.
4. We arrange the production and shipment.
